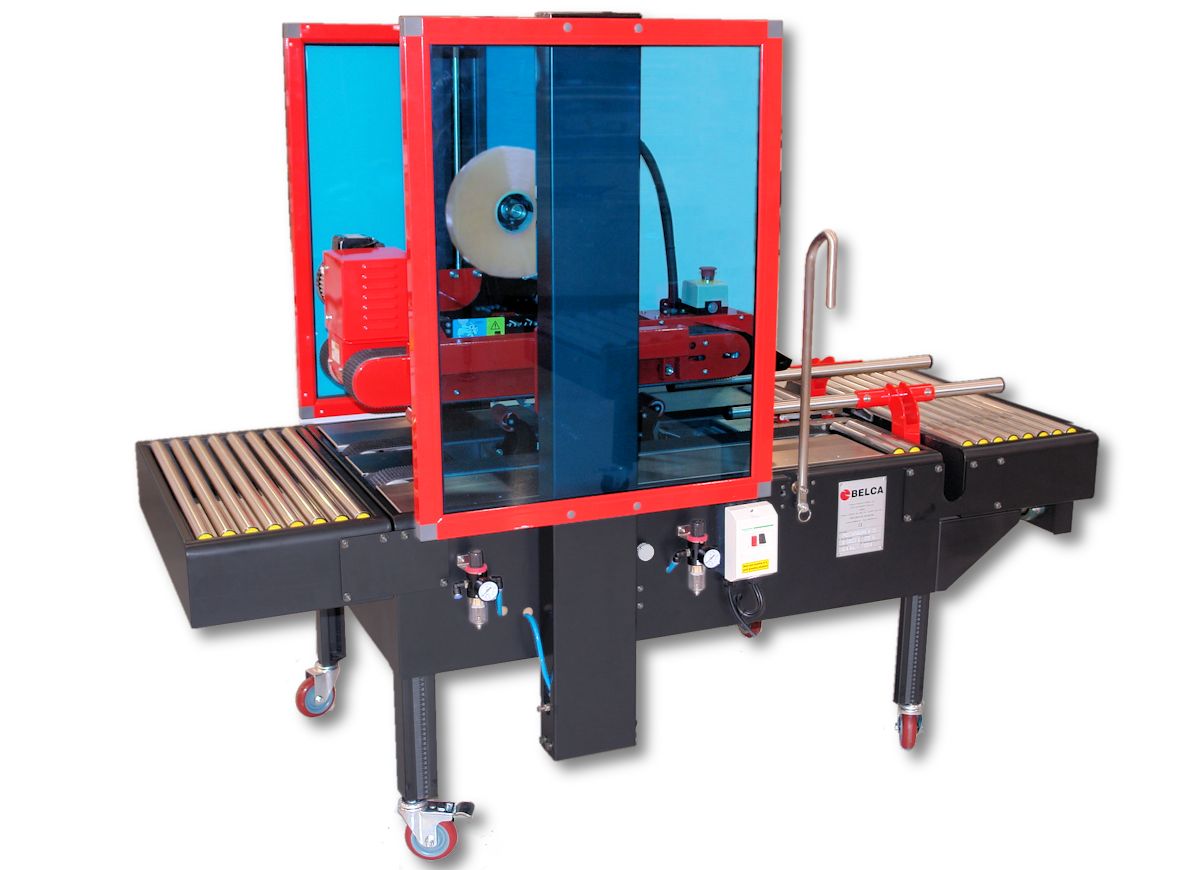

Case sealer B 25

Features

  • Belts speed: 25 m/min.
  • Carton dragging by side belts with independent motors.
  • Carton sealing: top and bottom.
  • Tape tension adjustment.
  • Metal rollers for carton movement.
  • Adjustable top guides to keep flaps squared while sealing.
  • Hand wheel adjustment of carton width and height.
  • Adjusting working height from 570 mm to 800 mm.
  • Emergency stop on top taping head for quick access.
  • Electrical panel with key.

Case dimensions

  • Length >100 MM.
  • Width 130 – 490
  • Height 120 – 500

Adhesive tape PVC, BOPP, Kraft
Compatible widths 50 – 75

Installation

  • Voltage 220V AC-1
  • Installed power 0,45 Kw
  • Compressed air 6 BAR.

Maximun speed 25 m/min

Request further information using the attached form.

B 25 case sealer consists of a metal basic structure reinforced with a lower sealing head inserted in a section of metal rollers that is in turn attached to a metallic bridge that supports the upper sealing head.

Boxes already formed are taken by a belt system which conveys longitudinally through the machine for fast closing lower and upper flaps. After that the box is formed and sealed.

The adjustment in height and width is manual.

Request information about the Product:

Available models

Precintadora B 25
