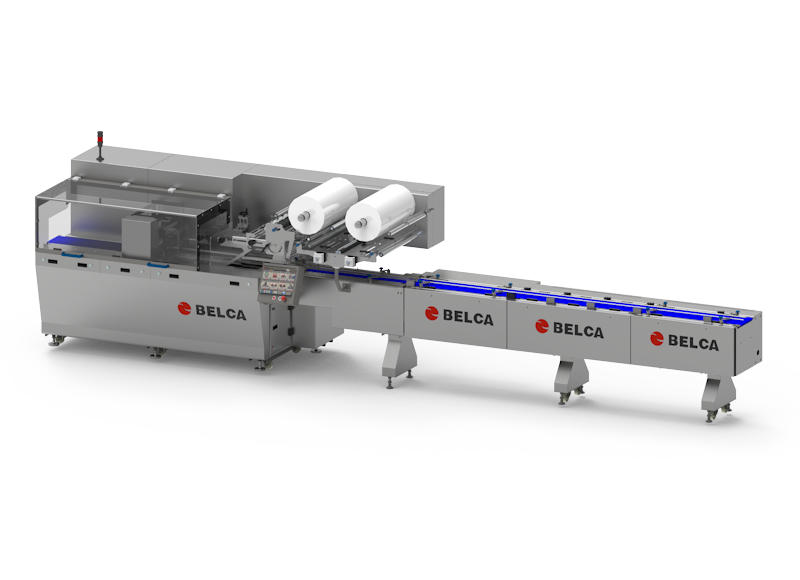

FLOW PACK FN 300 5S

Flow pack
FN 300 5S
FN 300 5S SIM
FN 300 5S
FN 300 5S
FN 300 5S SIM
FN 300 5S SIM
previous arrowprevious arrow
next arrownext arrow

FN 300 5S
FN 300 5S SIM
previous arrow
next arrow

The most reliable solution for fruit and vegetable sorting lines

High-end horizontal flow-pack wrapper, built to wrap product in trays at very high speeds with 5-belt input synchronism, with heat-sealing materials.

Application Sectors:

Fresh Vegetables
Fresh Vegetables
Fruits
Fruits
Bread - Pastries
Bread - Pastries
Processed Meat
Processed Meat
Perfume Industry
Industrial

Technical Features

SPEED

10 to 200 packs per minute

(Depending on product and type of film)

Dimensiones del Producto

PRODUCT DIMENSIONS

Max: 300 W – 185 H – 500 L (mm)

Remote Assistance

REMOTE ASSISTANCE

Access to the BELCA VPN

The FN 300 5S is a high-end horizontal flow-pack wrapper, built to wrap tray products at very high speeds automatically.

This machine is designed to be installed in line with the filling processes, these are fed automatically without the need to be manipulated by operators by means of a synchronism made up of 5 independent bands that ensure their perfect placement in the final section of pushers that are introduced into the forming box.

The machine is used for the wrapping of solid products individually, which are within the dimensions specified in the technical data sheet and some protection is necessary with respect to external agents.

FN 300 5S incorporates an electronic control of axes that synchronizes the clamp, the rollers and the feeding car, which makes the machine versatile and flexible in product changes, as well as good synchronism in the required movements. This leads us to obtain high performance and features of the machine. Also incorporates a double reel holder to reduce machine stops.

The machine is equipped with the latest in axis control for precise and fast changes in a fully automatic way, through a touch screen that allows memorizing more than 100 different products.

EXTERIOR

  • Machine built in laminated and painted steel.
  • Easy access control panel with embedded touch screen.
  • Parts in contact with the product in Stainless Steel.
  • Mechanical and electronic elements of the machine at the rear inside easily accessible cabinets.
  • Direction of work from right to left, with easy access panel. LH version from left to right.

INPUT

  • Fully synchronized 5-band input.
  • Product detection by means of photocells.
  • Product guides adapted to the product.

REEL HOLDER

  • Motorized reel holders with film tension control by servomotors and rocker that guarantees a constant film tension from the beginning to the end of the reel and adjustable from the screen.
  • Self-centering side-loading double reel stand.
  • Print registration.
  • Automatic reel change.

FORMING BOX

  • Pre-forming of film by means of product guides before forming.
  • Variable forming box depending on the product, adjustable in height and width.

LONGITUDINAL SEALERS

  • Longitudinal sealing with drive by independent Servomotor.
  • 4 pairs of rollers.
    • 1st set of adjustable pull rollers.
    • 2nd set of heated rollers for sealing.
    • 3rd set of heated rollers for sealing.
    • 4th set of folding rollers.
  • Pneumatic opening of the sealing rollers when stopping the machine.
  • Individual adjustment of the Pneumatic pressure of each sealer with pressure regulators.

CROSS SECTION

  • Rotating clamp for transverse sealing driven by servomotor.
  • Cross sealing width 300 mm. which guarantees perfect sealing.
  • Adjustment of the sealing height depending on the product.
  • Straight cut blade.
  • With the option of accompanying the product by drum.

FUNCTIONS

  • Adjustment of bag length, cutting speed, etc from touch screen.
  • Memorization of parameters up to 100 products.
  • Non-product, non-bag function.
  • Detection of badly positioned product.
  • Stop with open transverse sealing bars.
  • Automatic stop of the machine in case of obstruction of the cross section with electronic force limiter.

DRIVE SHAFT REEL

  • Regulation of the tension of the rocker arm for the use of any material on the market, by means of a pneumatic system.

ELECTRONIC EQUIPMENT

  • Machine control through a programmable controller for maneuvers with a state-of-the-art dedicated axis controller card through a fiber optic field bus to control the axes with servomotors.
  • Electronic machine equipped with independent servomotors (cross section, sealing rollers, bands, unwinding and feeding belt).
  • Motorized self-centering double reel holder.
  • 12″ color touch screen, embedded, with IP65, which facilitates the visualization of the status of the machine at all times and its durability.
  • Electronic speed servo drives on bands and sealers.
  • Sealing temperature regulators with fine adjustment and integrated autotuning with full configuration and control from a touch screen.
  • Mercotac in thermal sensors.
  • Acoustic and luminous reel end warning.
  • Substitution of Servomotors and servo drives in a simple way, the configuration values ​​of that Servo Drive remain in the axis controller, so restarting the machine after a substitution will work without the need for any other action, which facilitates substitutions and saves time in breakdowns.
  • Backup/Restore function both on the PLC and on the Touch Screen to facilitate the replacement of these 2 elements, again saving time in the event of a breakdown.
  • Possibility of viewing both the machine manual and the electrical diagrams on the touch screen.
  • Possibility of connecting the machine to the internet (Belca’s own fully secure VPN) to provide remote assistance, facilitating the detection of possible faults or making functional changes in the Automata and/or Touch Screen, this connection can be made via Wi-Fi (putting the machine in the company’s Wi-Fi network) or via RJ45 cable (the client will provide an Ethernet network cable with internet access). The connection of the machine to the client’s network will allow access from any device (PC, Smartphone, Tablet) to display screens with information on the real-time status of the machine.

SAFETY RULES

  • Protections and security systems in accordance with European and American standards.
  • General switches provided with security systems.
  • Transmission areas, chains, etc. properly closed.
  • CE certified, the machine conforms to the Machinery Directive 2006/42 / CE.
  • Gusseted pack kit.
  • Cross section drum kit.
  • Accumulation roller conveyor for product evacuation.
  • Conveyor belt for product evacuation.
  • Product evacuation ramp.
  • Bioriented Polypropylene: Glossy film for automatic non-shrink bagging. (BOPP)
  • Complex Films: Film composed of two or more components to guarantee sealing, from 40 to 150 microns. Shrink film of between 20-25μm with barrier to oxygen in application with gas sweeping.
  • BEL-Green range: more environmentally friendly films.
