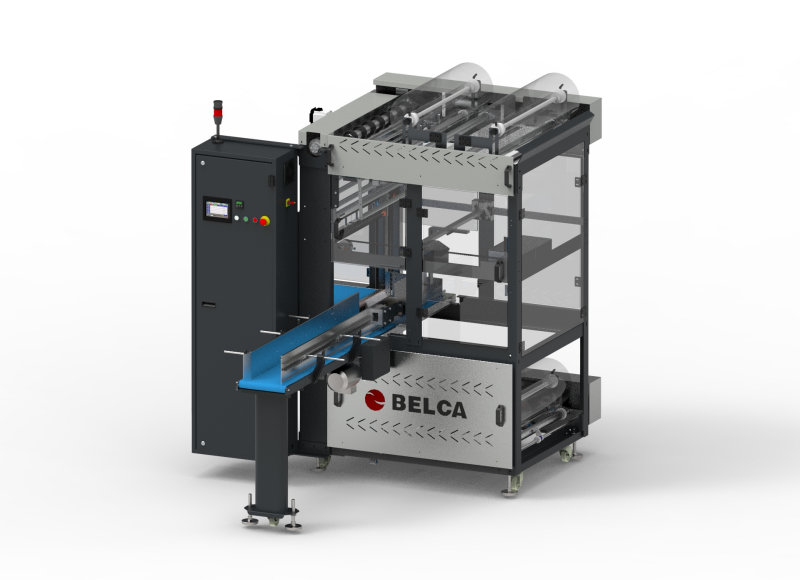

Automatic perpendicular sleeve wrapper BEP

BEP 60
BEP 80
BEP 60
BEP 60
bep-80-plus-universal
bep-80-plus-universal
previous arrowprevious arrow
next arrownext arrow

BEP 60
bep-80-plus-universal
previous arrow
next arrow

Automatic perpendicular shrink banding for all types of products.

BEP shrink wrappers are machines designed to wrap products or batches of products with shrinkable polyethylene film with perpendicular entry by means of a conveyor belt. For finishing it is necessary to install a heat tunnel. Get to know the BELCA range of shrink tunnels.

Application Sectors:

Printing Industry
Printing Industry
Perfume Industry
Industrial
Preserves
Preserves
Pasta - Legumes
Pasta - Legumes
Household
Household

Technical Features

SPEED

from 8 to 25 packs per minute

(Depending on product and type of film)

Dimensiones del Producto

PRODUCT DIMENSIONS

BEP 60: 550 W – 380H – 300 L (mm)
BEP 80: 750 W – 350H – 300 L (mm)

MECHANICAL SEALING

Cross section drive by servomotor.

BEP sleeve wrapping machines are state-of-the-art machines, designed to wrap products or batches of products with shrink polyethylene film.

Starting in all cases with two foil reels as wrapping material, one upper and one lower, the product is tubularly wrapped with this shrink material and sent to a heat chamber. Through heat, the film is shrink-wrapped so that the final finish is a protected and compact package.

Sleeve wrapping machine with servo cross section drive and perpendicular belt input that can be mounted on both sides.

Mechanical construction of BEP is robust and the operation versatile through electronic control of the different movements of the machine, offering high reliability and allowing adaptation to different formats and production needs.

EXTERIOR
• Machine built in laminated steel.
• Electronic elements of the machine in a cabinet with easy access.
• Indistinct working direction as the input belt can be mounted on both sides.
• Parts in contact with the product, in stainless steel.
INPUT
• Motorized Centering Device.
• Light load pneumatic device for light weight products.
• Product detection by photocells.
• Product input through motorized conveyor belts.
REEL HOLDER
• Motorized reel holder for dragging the film.
• Constant film tension from the maximum to the minimum diameter of the reel.
• Double motorized reel holder.
• Automatic reel change.
OUTPUT
• INOX monoblock outlet table.
• Motorized exit band.
CROSS SECTION
• Sealing bar driven by servomotor.
• Heated jaw sealing system.
• Exit presser.
• Pusher with product entrapment safety.
• Security system in case of power failure so that the clamp does not lower.
FUNCTIONS
• Memorization of parameters up to 20 products.
• Non-product, non-bag function.
• Automatic stop of the machine in case of obstruction of the jaws.
• Clamp safety for NO entrapment of product.
• Complete setting of times and functions, by means of a user-friendly programmable terminal.
ELECTRONIC EQUIPMENT
• Electronic machine equipped with independent motors (cross section, reel holder, input belt and pusher).
• 5.7 ”color touch screen, which facilitates the status of the machine at all times.
• Electronic variable speed drives on belts and reel holders.
• Fine-tuned welding temperature regulators.
• Acoustic and luminous coil final KIT.
SAFETY RULES
• Protections and security systems in accordance with European and American standards.
• CE certified, the machine conforms to the Machinery Directive 2006/42 / CE.

• Ethernet kit.
• Hoist for coil loading.
• Stainless steel construction.
• Synchronized feeders.
• Rotary table.
• Roller outlet.
• Conveyor Belts.
• Pressor at the exit.

For retractable applications it will be necessary to have a retraction tunnel. For this we have a wide range of shrink tunnels. Consult models according to need.

  • Polyethylene: Tear and puncture resistant film. (PE)
