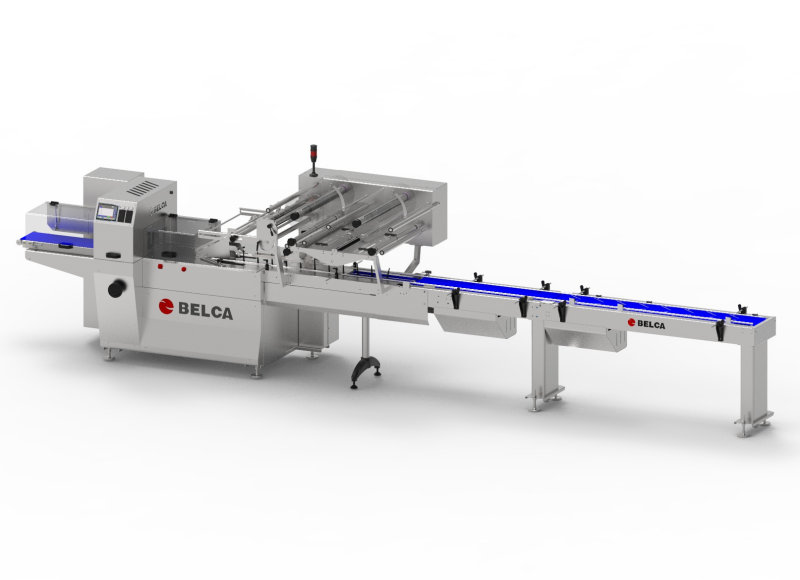

BF 325 H SINCRO INOX
BF 325 SINCRO SIM INOX
previous arrow
next arrow

Flow pack for general packaging and high work volume

Horizontal flow-pack wrapper built to wrap single or tray products at high speeds automatically with heat-sealing materials.

Application Sectors:

Fresh Vegetables
Fresh Vegetables
Fruits
Fruits
Bread - Pastries
Bread - Pastries
Ready Meals
Ready Meals
Perfume Industry
Industrial

Technical Features

SPEED

30 to 220 packs per minute

(Depending on product and type of film)

Dimensiones del Producto

PRODUCT DIMENSIONS

Max: 310 W – 140 H – 550 L (mm)

General use

GENERAL USE

Trays, batches and units

The BF 325 H is a high-end, horizontal flowpack or pillow type wrapper designed to automatically wrap products with certain heat sealing materials.

BF 325 H mount a multi-axis electronic control that synchronizes the cross section, the rollers and the infeed, which improves the machine versatility and flexibility in product changes, as well as a good synchronism in the required movements. This leads us to obtain a high performance in this machine.

Used for solid products wrapping individually or in batches, that are within the dimensions specified in the technical sheet and need some protection respect to external agents.

· Electronic machine equipped with three independent motors (jaws, rollers, carriage) synchronized by a multi-axis electronic control.
· Machine built in laminated steel, with the mechanical and electronic elements of the machine in the back, inside easy-access cabinets.
· All parts in contact with product in stainless steel..
· Direction of work from right to left. Optional left to right direction.
· Touch screen that facilitates the state of the machine at all times.
· Adjusting the bag length, cutting speed, etc. from touch screen.
· Storage of parameters up to 20 products (expandable on demand).
· Electronic speed variators in bands and sealers.
· Fine-tuned welding temperature regulators.
· Infeed with 2,5 mts. of loading zone.
· Non-bag non-product function.
· Variable forming box.
· Constant tension of film from the maximum diameter to the minimum of the reel.
· Self-centering self-locking spindles with locking system using a steering wheel without cones.
· Motorized reel holder for the drag of the film.
· Photoelectric cell for printing centering.
· 3 pairs of film feed rollers.
· 1st movable film drag kit.
· 2nd heated set for lower sealing.
· 3rd set to facilitate folding of the bottom sealing.
· Pneumatic opening of the sealing roller when the machine is stopped.
· Rotating jaws of cross section driven by servomotor.
· Progressive variation of automatic jaw speed.
· Stop with open cross section.
· Automatic stop of the machine in case of obstruction of the sealers with electronic stress limiter.
· Adjustable height sealing center.
· Protections and safety systems in accordance with European and American standards.
· Final notice of reel with acoustic and luminous signal.

· Different versions of sealing and cross-section.
· Markers-Encoders.
· Double reel holder.
· Automatic reel change.
· Gas introducer.
· Euroslot die.
· Double clamp.
· Rotary table.
· Output rollers.
· Motorized belt.

  • Bioriented Polypropylene: Glossy film for automatic non-shrink bagging. (BOPP)
  • Complex Films: Film composed of two or more components to guarantee sealing, from 40 to 150 microns. Shrink film of between 20-25μm with barrier to oxygen in application with gas sweeping.
  • BEL-Green range: more environmentally friendly films.
  • Paper: Different types and thicknesses
