FLOW PACK SP 100 H PP INOX

Flow pack

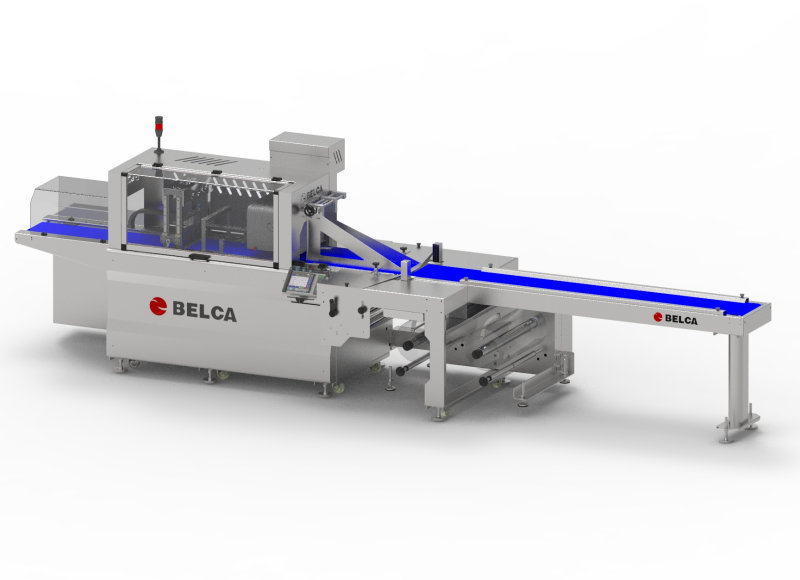

SP 100 H PP INOX

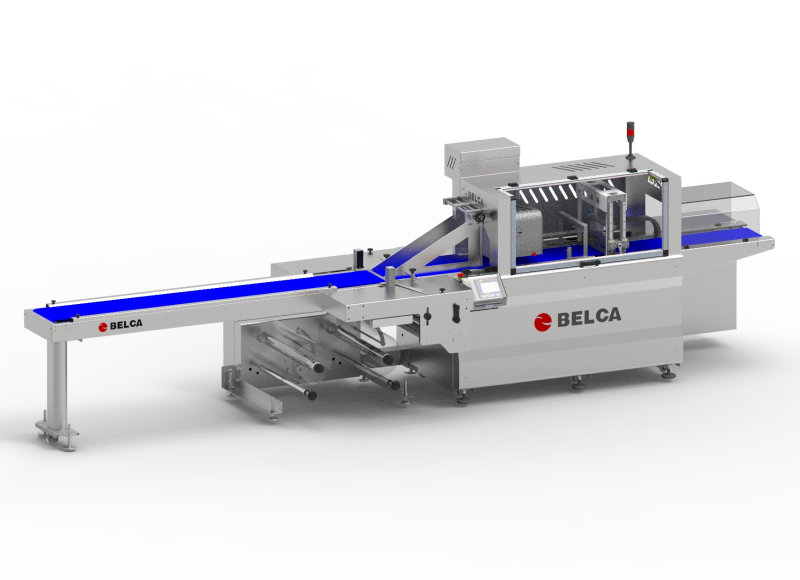

SP 100 H PP SIM INOX
SP 100 H PP INOX
SP 100 H PP INOX
SP 100 H PP SIM INOX
SP 100 H PP SIM INOX
previous arrowprevious arrow
next arrownext arrow

SP 100 H PP INOX
SP 100 H PP SIM INOX
previous arrow
next arrow

Flow pack packaging machine for food products with MAP option

Horizontal flow-pack wrapper with bottom reel and top sealing. Built to wrap food products in bags and the possibility of installing a gas sweep system for MAP. Entry by motorized and asynchronous band to not limit the length of the product.

Application Sectors:

Fresh Vegetables
Fresh Vegetables
Fruits
Fruits
Frozen Foods
Frozen Foods
Bread - Pastries
Bread - Pastries
Processed Meat
Processed Meat

Technical Features

SPEED

40 to 80 packs per minute

(Depending on product and type of film)

Dimensiones del Producto

PRODUCT DIMENSIONS

Max: 380 W – 190 H – L (mm)

Food in general

FOOD IN GENERAL

Unit products or batches

Asynchronous flow-pack specially designed for wrapping food products. Works with polypropylene BOPP or complex films.

The SP 100 H PPG INOX version is prepared for packaging under a protective atmosphere.

Wide range of applications of this machine because the input design with no pushers to limit the length of the product and because the amplitude of the cross sealing area.

· Machine built in stainless steel.
· Motorized film unwinding with adjustable mechanical perforation system.
· Machine equipped with independent motors electronically synchronized.
· Electronic speed variators in bands and sealers.
· Adjustable height sealing center by lifting the cross section.
· Touch screen that facilitates the state of the machine at all times.
· Adjusting the longitudinal sealing from touch screen.
· Control maneuver by PLC and storage of parameters up to 20 products (expandable on demand).
· Fine-tuned welding temperature regulators.
· Variable forming box.
· Constant tension of film from the maximum diameter to the minimum of the reel.
· Possibility of adjusting the sealing head, depending on the height of the product.
· Automatic waste film picker with easy access.
· Safety switch for emergency stop.
· General switches with safety systems.
· Transmission areas, chains, etc. properly closed.
· Methacrylate shields with full coverage of the welding zone.
· Direction of work from right to left. Optional left to right direction.
· Protections and safety systems in accordance with European and American standards.
· Double motorized reel holder for the drag of the film.

· Laminated steel construction.
· Automatic reel switching.
· Product loading tray.
· Markers-Encoders.
· Different types and lengths of in feed belt.
· Gas injector.
· Die Euroslot.
· Output presser.
· Rotary table.
· Output rollers.
· Motorized belt.

  • Bioriented Polypropylene: Glossy film for automatic non-shrink bagging. (BOPP)
  • Complex Films: Film composed of two or more components to guarantee sealing, from 40 to 150 microns. Shrink film of between 20-25μm with barrier to oxygen in application with gas sweeping.
  • BEL-Green range: more environmentally friendly films.
  • Paper: Different types and thicknesses
