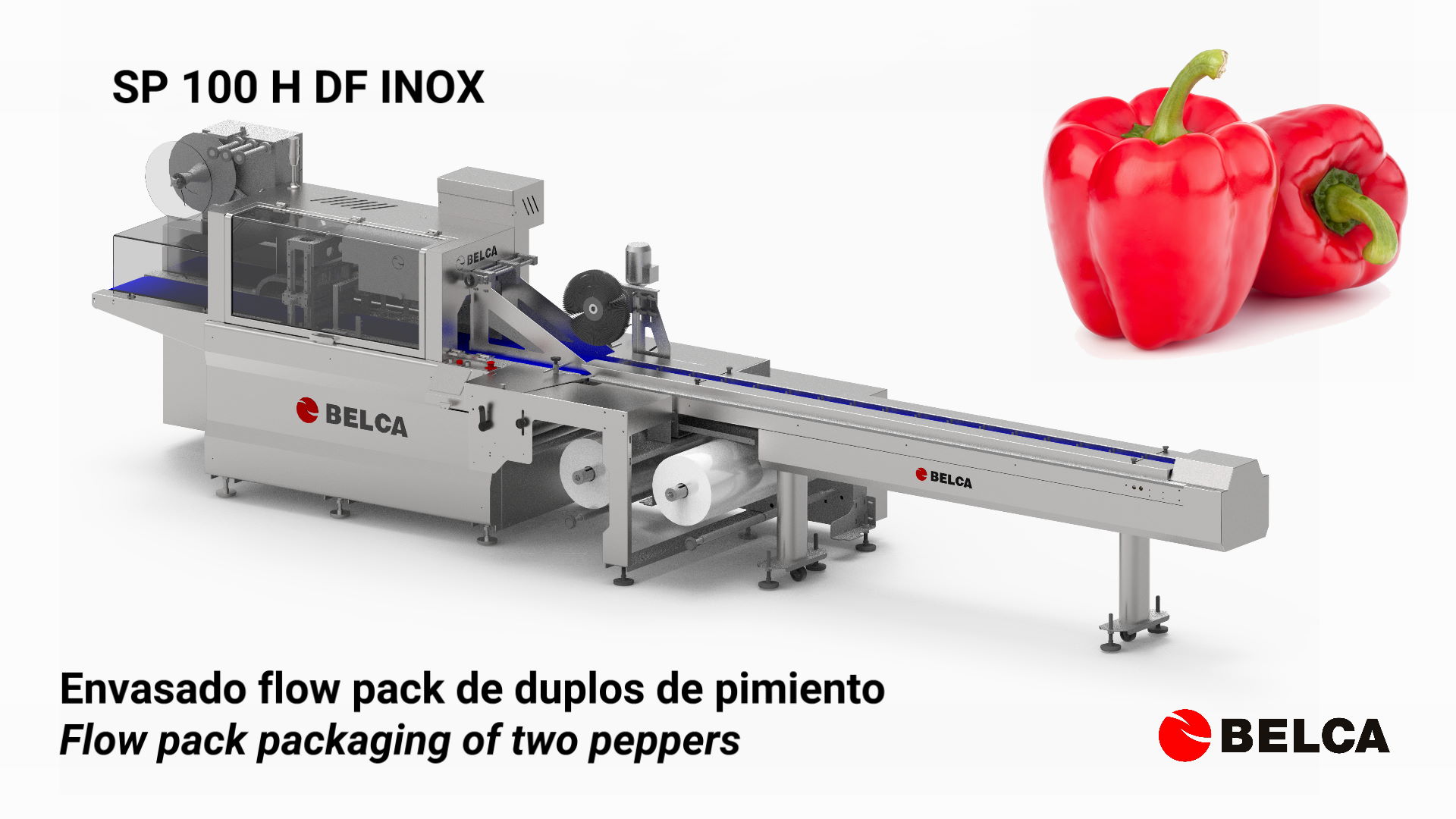

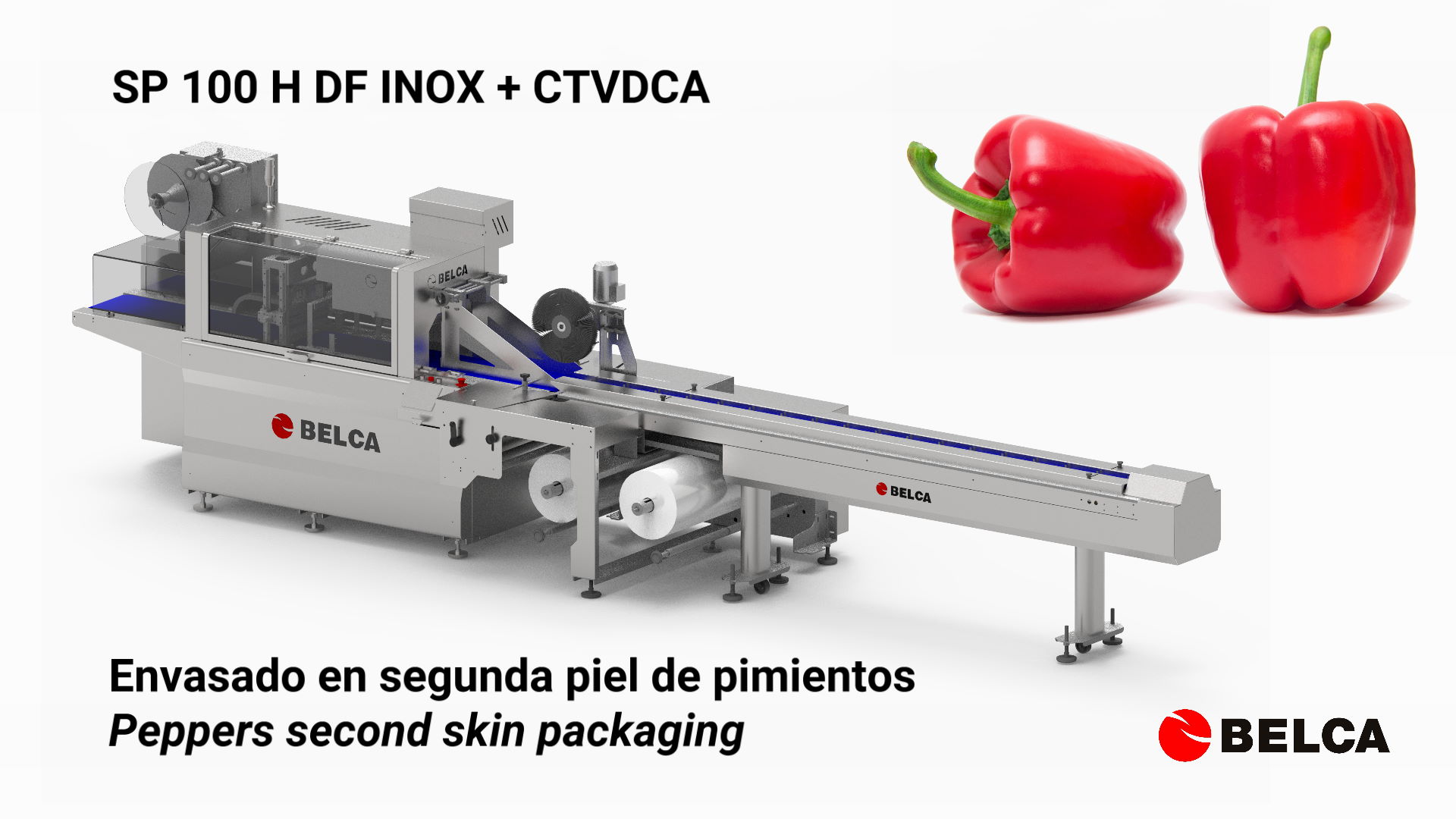

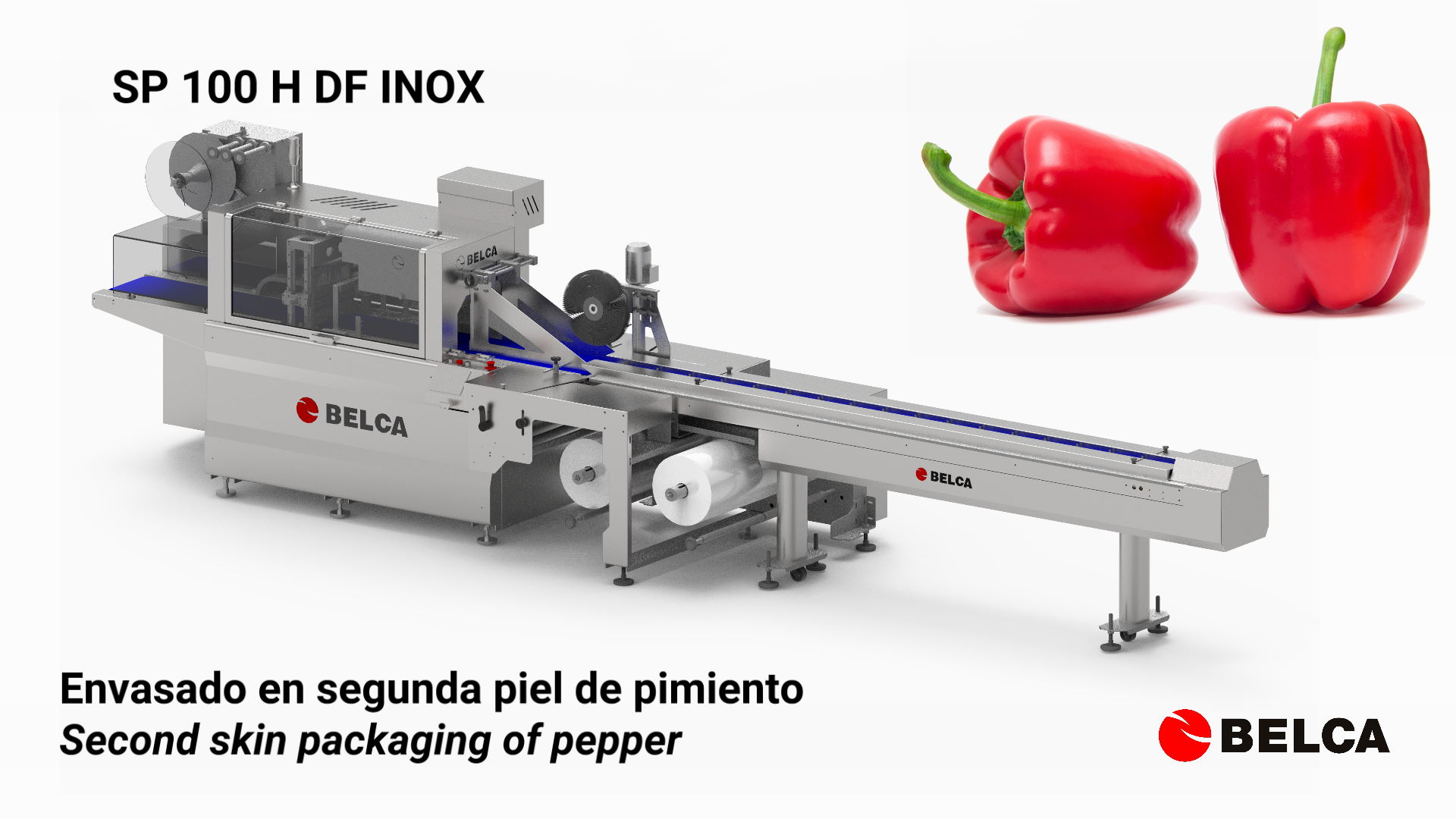

FLOW PACK SP 100 H DF INOX

Flow pack
SP 100 H DF INOX
SP 100 H DF SIM INOX
SP 100 H DF INOX
SP 100 H DF INOX
SP 100 H DF SIM INOX
SP 100 H DF SIM INOX
previous arrowprevious arrow
next arrownext arrow

SP 100 H DF INOX
SP 100 H DF SIM INOX
previous arrow
next arrow

Flow pack packaging machine for bagging and/or shrink-wrapping with top support.

Horizontal flow-pack wrapper with bottom reel and top sealing, built to wrap food products with shrink and non-shrink films. Asynchronous so as not to limit the length of the product and input by a motorized belt with a holding brush in the passage of the bands to work with products of low stability.

Application Sectors:

Fresh Vegetables
Fresh Vegetables
Fruits
Fruits
Frozen Foods
Frozen Foods
Bread - Pastries
Bread - Pastries
Ready Meals
Ready Meals

Technical Features

SPEED

40 to 80 packs per minute

(Depending on product and type of film)

Dimensiones del Producto

PRODUCT DIMENSIONS

Max: 380 W – 190 H – L (mm)

Food in general

FOOD IN GENERAL

Unit products or batches

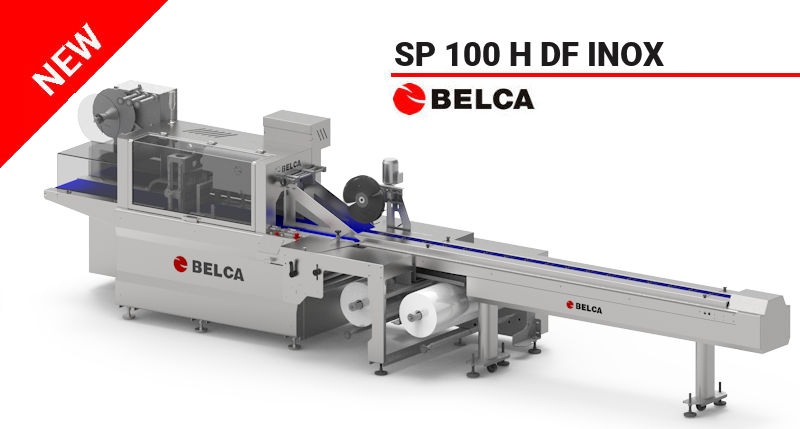

The SP 100 H DF INOX is an automatic flow pack wrapper, built to wrap a wide range of products automatically with certain heat-sealing materials.

The machine has an input belt with a loading area of 3,200 mm with a double pusher and a central belt and a brush that prevents the movement of the product when it passes from the feeding trolley to the wrapping head.

The machine is used for the wrapping of solid products individually, that within the dimensions specified in the technical sheet, their protection is necessary in a certain way with respect to external agents.

The mechanical construction is robust and the operation versatile as the machine has electronic control of the different movements of the machine.

EXTERIOR

  • Machine built in stainless steel.
  • Mechanical and electronic elements of the machine at the rear inside easily accessible cabinets.
  • Direction of work from right to left, with easy access panel. LH version from left to right.

INPUT

  • 3200 mm loading zone feed belt with double pusher and central belt.
  • Product detection by photocells.
  • Product guides adapted to the product.

REEL HOLDER

  • Motorized reel holder for dragging the film.
  • Constant film tension from the maximum to the minimum diameter of the reel.
  • Self-centering double reel holder.

FORMING BOX

  • Variable forming box to the predetermined width of the worktop depending on the product.

LONGITUDINAL SEALERS

  • Longitudinal sealing with independent drive.
  • Sealing center regulation.
  • 2 pairs of rollers.
    • 1st drag game. (manual opening)
    • 2nd heated set to perform the cut and weld. (pneumatic)
  • Pneumatic opening of the sealing rollers when stopping the machine.

SURPLUSS COLLECTOR

  • Motorized waste collector with fill detection.

CROSS SECTION

  • BOX MOTION type clamp for transverse sealing actuated by servo motor.
  • Cross sealing width 400 mm. which guarantees perfect sealing.

FUNCTIONS

  • Adjustment of bag length, cutting speed, etc from touch screen.
  • Memorization of parameters up to 100 products.
  • Non-product, non-bag function.
  • Detection of badly positioned product.
  • Stop with open transverse sealing bars.
  • Automatic stop of the machine in case of obstruction of the cross section with electronic force limiter.
  • Height-adjustable transversal sealing centering.

ELECTRONIC EQUIPMENT

  • Electronic machine equipped with independent motors (cross section, sealing rollers, belts and feeding belt).
  • 7 ”color touch screen, which facilitates the status of the machine at all times.
  • Electronic variable speed drives in bands and sealants.
  • Fine adjustment sealing temperature regulators.
  • Acoustic and luminous reel end.

SAFETY RULES

  • Protections and security systems in accordance with European and American standards.
  • General switches provided with safety systems.
  • Transmission areas, chains, etc.… duly closed.
  • CE certified, the machine conforms to the Machinery Directive 2006/42 / CE.

· Shuttle roller in output.
· Accumulation roller conveyor for product evacuation.
· Conveyor belt for product evacuation.
· Product evacuation ramp.
To work with shrink films it is necessary to install a heat tunnel. Get to know the BELCA range of shrink tunnels.
