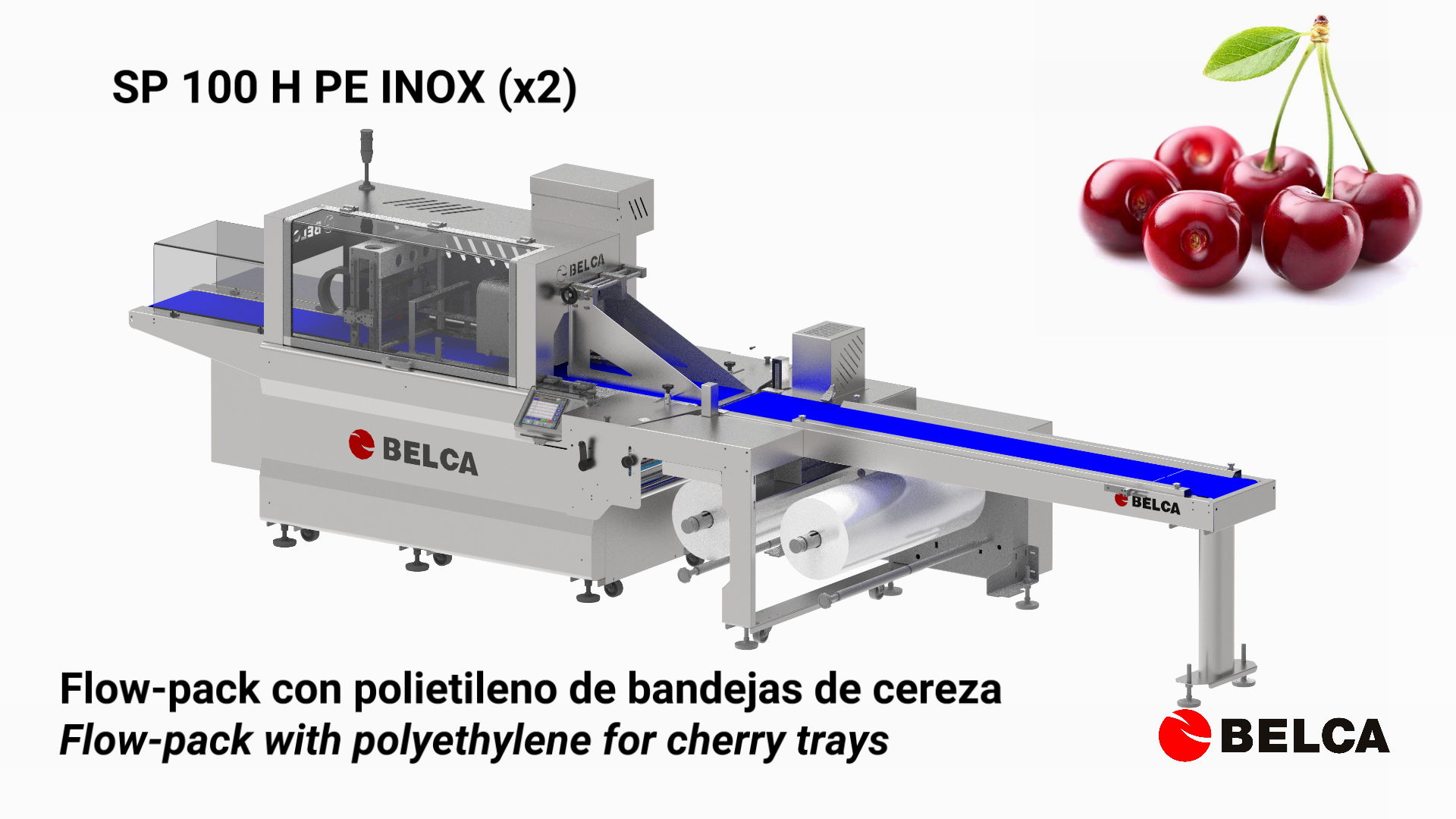

FLOW PACK SP 100 H PE INOX

Flow pack

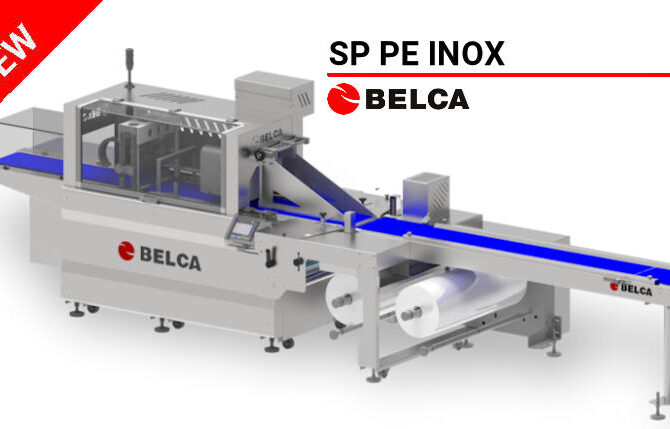

SP PE INOX
SP PE SIM INOX
SP PE INOX
SP PE INOX
SP PE SIM INOX
SP PE SIM INOX
previous arrowprevious arrow
next arrownext arrow

SP PE INOX
SP PE SIM INOX
previous arrow
next arrow

Flow pack packaging machine for general bagging with polyethylene films.

Horizontal flow-pack wrapper with bottom reel and top sealing. Built to wrap products of any nature in bagging or shrink-wrapping with polyethylene films. Entry by motorized and asynchronous band to not limit the length of the product.

Application Sectors:

Fresh Vegetables
Fresh Vegetables
Frozen Foods
Frozen Foods
Fruits
Fruits
Hardware
Industry
Textile Industries
Textile Industries

Technical Features

SPEED

40 to 80 packs per minute

(Depending on product and type of film)

Dimensiones del Producto

PRODUCT DIMENSIONS

Max: 380 W – 190 H – L (mm)

General use

FOR GENERAL USE

Unit products or batches

The SP 100 H PE INOX is an automatic flow pack wrapper, built to wrap a wide range of products automatically with certain heat-sealing materials.

The machine has an input belt with a loading area of 3,200 mm with a double pusher and a central belt and a brush that prevents the movement of the product when it passes from the feeding trolley to the wrapping head.

The machine is used for the wrapping of solid products individually, that within the dimensions specified in the technical sheet, their protection is necessary in a certain way with respect to external agents.

The mechanical construction is robust and the operation versatile as the machine has electronic control of the different movements of the machine.

EXTERIOR

  • Machine built in stainless steel.
  • Mechanical and electronic elements of the machine at the rear inside easily accessible cabinets.
  • Direction of work from right to left, with easy access panel. LH version from left to right.

INPUT

  • 2500 mm loading zone feed belt.
  • Product detection by photocells.
  • Product guides adapted to the product.

REEL HOLDER

  • Motorized reel holder for dragging the film.
  • Constant film tension from the maximum to the minimum diameter of the reel.
  • Self-centering double reel holder.

FORMING BOX

  • Variable forming box depending on the product, adjustable in height and width.

LONGITUDINAL SEALERS

  • Longitudinal sealing with independent drive.
  • Sealing center regulation.
  • 2 pairs of smooth film drive rollers:
    • 1st heated set of preheating.
    • 2nd heated set to make the 10mm smooth weld.
  • Pneumatic opening of the sealing rollers when stopping the machine.

CROSS SECTION

  • BOX MOTION type clamp for transverse sealing actuated by servo motor.
  • Cross sealing width 400 mm. which guarantees perfect sealing.
  • Pneumatically actuated Zig-Zag serrated blade.

FUNCTIONS

  • Adjustment of bag length, cutting speed, etc from touch screen.
  • Memorization of parameters up to 100 products.
  • Non-product, non-bag function.
  • Detection of badly positioned product.
  • Stop with open transverse sealing bars.
  • Automatic stop of the machine in case of obstruction of the cross section with electronic force limiter.
  • Height-adjustable transversal sealing centering.

ELECTRONIC EQUIPMENT

  • Electronic machine equipped with independent motors (cross section, sealing rollers, belts and feeding belt).
  • 5,7 ”color touch screen, which facilitates the status of the machine at all times.
  • Electronic variable speed drives in bands and sealants.
  • Fine adjustment sealing temperature regulators.
  • Acoustic and luminous reel end.

SAFETY RULES

  • Protections and security systems in accordance with European and American standards.
  • General switches provided with safety systems.
  • Transmission areas, chains, etc.… duly closed.
  • CE certified, the machine conforms to the Machinery Directive 2006/42 / CE.

· Shuttle roller in output.
· Accumulation roller conveyor for product evacuation.
· Conveyor belt for product evacuation.
· Product evacuation ramp.

  • Polyethylene: Glossy film for non-shrink automatic bagging. (PE)
  • Complex Films: Film composed of two or more components to guarantee sealing, from 40 to 150 microns.
  • BEL-Green range: films more respectful with the Environment.
