Packaging of individual or group products with cadences of up to 70 packs/min. with continuous welding and without limit of length using a single-fold heat shrink film or carrying out bagging with non-shrink films. To work with shrink films it is necessary to install a heat tunnel. Get to know the BELCA range of shrink tunnels.
up to 70 packs per minute
(Depending on product and type of film)
Max: 480 W – 200 H – ∞ L (mm)
Batch and unit packaging under shrink wrap or bagging.

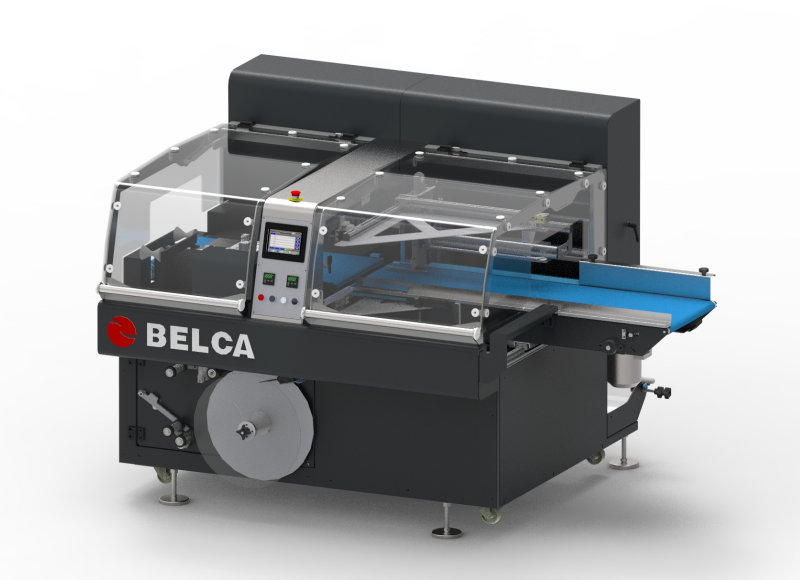

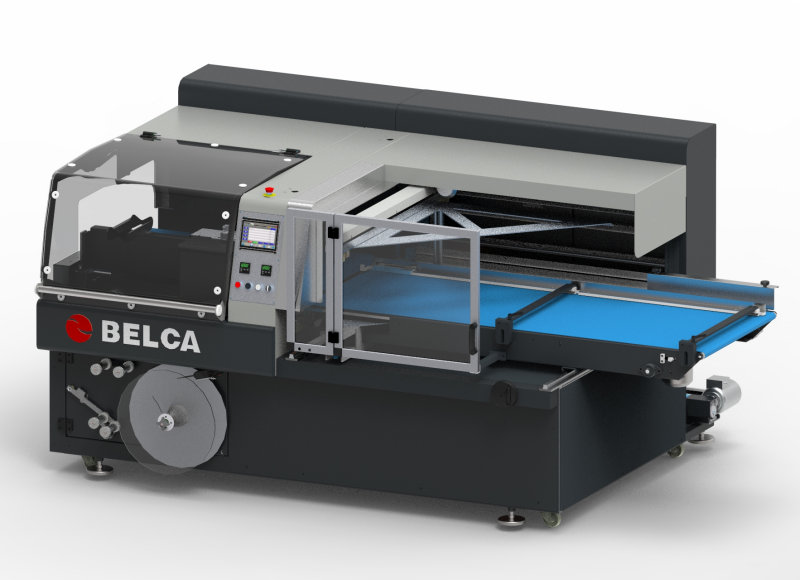

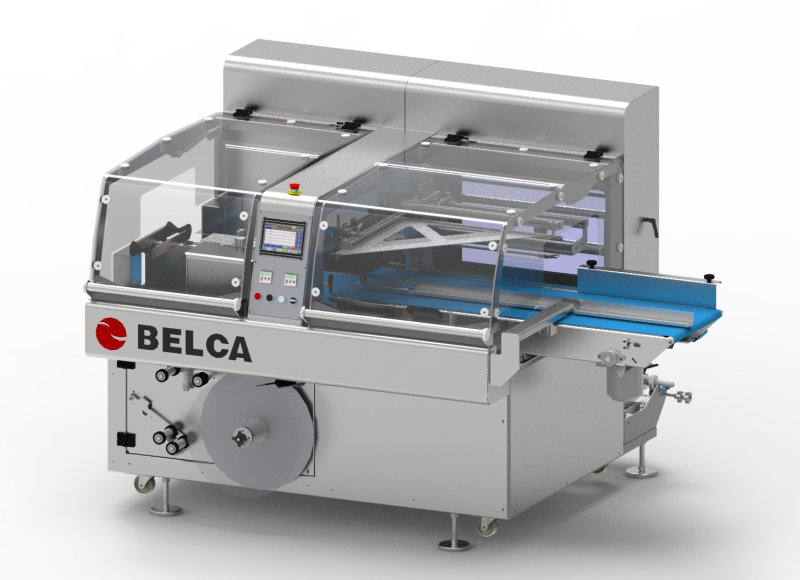

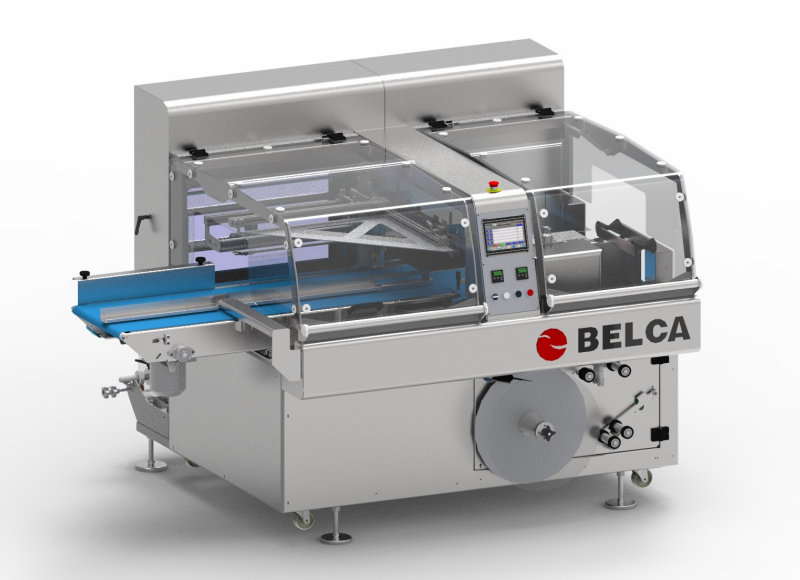

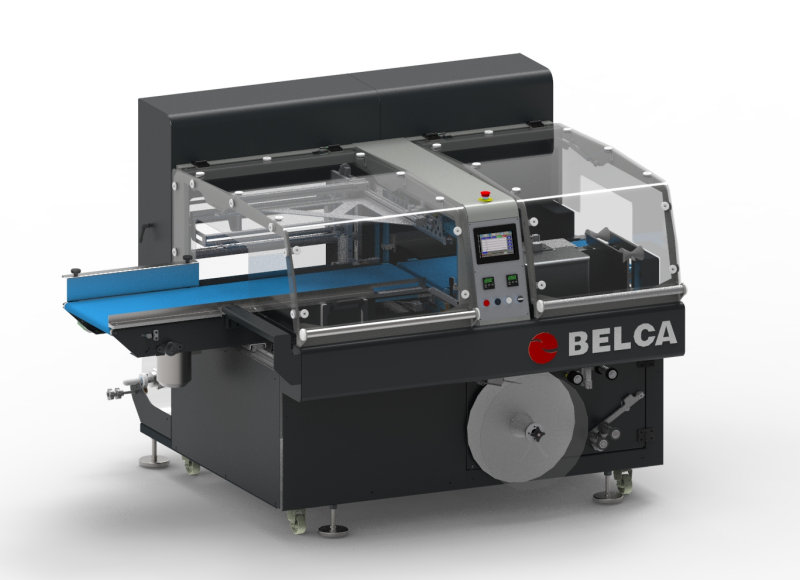

BLSC is a continuous high performance wrapping machine with cadences up to 65 pq/min, fully mechanical and very versatile. The continuous longitudinal seal and cut feature allows bagging or shrink products of any length.
BLSC is a unit designed for long or very long series or in those cases in which a high cadence of work is required both in bagging and shrink wrapping if a shrink tunnel is added.
• Construction in painted or stainless steel.
• Automatic inline feeding.
• Cross section by heated clamp.
• Cross section drive by servomotor.
• Cross section equipped with safety limit switches, for an immediate stop if any obstacle in the path.
• Longitudinal seal and cut system using heating rollers.
• Retractable belt system in cross section pitch for unstable products.
• Automatic adjustment of the sealing center.
• Automatic adjustment of the width of the infeed belt.
• Fine-tuning temperature controllers.
• Control operation by PLC.
• Film advance control by encoder.
• Complete adjustment of times and functions by a programmable terminal, easy to use.
• Motorized film uncoiling.
• Automatic collector of the excess film.
• Protective guards for movement areas with access stop system.
• Transmission areas, chains, etc., totally closed.
• General switches provided with security system.
• Protections and security systems in accordance with European and American standards.
• CE certificate, the machine conforms to the Machinery Directive 2006/42 / EC.
• Synchronized feeders.
• End of reel detection.
• Film folding system.
• Roller output.
• Motorized belt.
• Rotating table.
• Film printers – Encoders.
Permanent stock
of spare parts
Service Leader
in urgent spare parts
+5.000 installations
worldwide
Leading Assistance
in the market
If you prefer, call us and we will answer your questions out loud:
Our Packaging Solutions are present all over the world
A machinery division in which we present the new range of BELCA FlowPack that will make your products adapt to the realities of packaging for a more sustainable world.
Guidance specifications, may not be up to date. Please, request more information using the contact form.
