High performance continuous horizontal wrapper with cadences of up to 120 pq/min. thanks to the predictive movement of the cross section that avoids stopping in the cutting process. No length limit using single-fold shrink or bagging film. To work with shrink films it is necessary to install a heat tunnel. Get to know the BELCA range of shrink tunnels.
up to 120 packs per minute
(Depending on product and type of film)

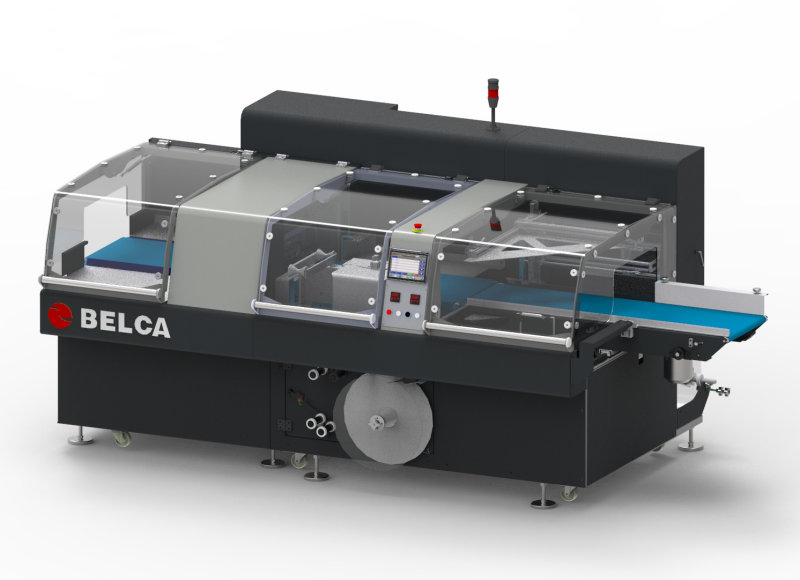

BLSD 50: 480 W – 200H – ∞ L (mm)

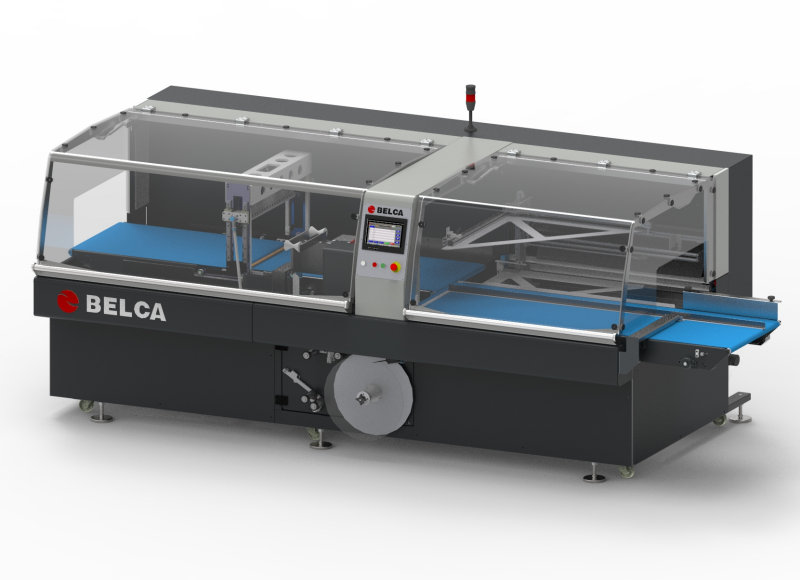

BLSD 70: 600 W – 250H – ∞ L (mm)
Access to the BELCA VPN
BLSD is a high-performance continuous sealing machine with speeds up to 120pq/min. due to the predictive movement of the jaw that prevents the stop in the welding process.
BLSD is a very versatile mechanical machine since the continuous welding feature allows to pack or shrinkpack products of any length.
Fully automatic, for bagging or shrink packaging if a shrink tunnel is incorporated.
EXTERIOR
• Construction in painted laminated steel.
• Mechanical and electronic elements of the machine at the back inside cabinets with easy access.

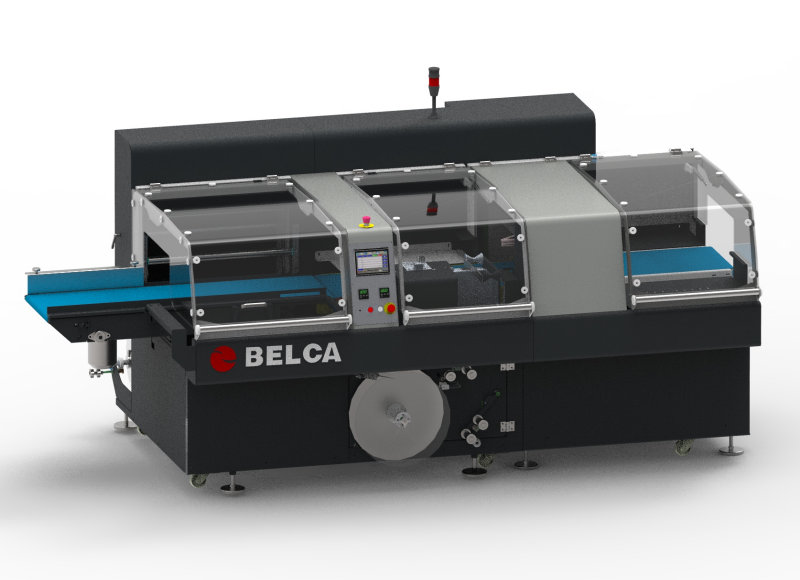

• Direction of work from Right to Left or symmetrical
• Front control panel with 10-inch embedded touch screen.
• Transport wheels.
• Height-adjustable anchor feet.
INPUT
• Automatic inline feed input.
• Activation by servomotor.
• Detection of the product by means of photocells.
• Automatic adjustment of the width of the input band by means of the screen.
REEL HOLDER
• Motorized reel holder with film tension control by servomotors and rocker that guarantees constant film tension from the beginning to the end of the reel and adjustable from the screen.
• Side loading reel holder.
• Film registration control.
• Pneumatically driven film perforation system.
SURPLUS COLLECTOR
• External motorized automatic collector with pneumatic separator of excess film.
FORMING BOX
• Automatic adjustment of the height of the former by means of a screen.
• Control of tension of the film in the former with servomotors and adjustable from the screen depending on the type and width of the film used.
LONGITUDINAL SEALER
• Longitudinal sealing with Servomotor drive.
• Regulation of the sealing center by touch screen and with automatic positioning by servomotor.
• Continuous longitudinal sealing and cutting system using heating rollers.
• Pneumatic opening of the sealing roller when stopping the machine.
CROSS SECTION
• BOX MOTION type clamp for transversal welding activated by servomotor.
• Regulation of the welding center activated by Servomotor and automatic positioning according to product height and adjustable from the screen.
• 500 / 700 mm wide transversal sealing.
• Transversal welding system by means of a heated jaw with a Teflon-coated blade.
FUNCTIONS
• Control maneuver by programmable controller (PLC).
• Adjustment of bag length, cutting speed, etc. From touch screen.
• Memorization of parameters up to 100 products.
• Fine tunning temperature controllers.
• Possibility of bagging with brand printed on film.
• Automatic stop of the machine in case of obstruction of the cross section with electronic force limiter.
• Control of different positions in the machine by encoder.
ELECTRONIC EQUIPMENT
• Control of the machine through a programmable automaton for maneuvers with a state-of-the-art dedicated axis controller card through a field bus with fiber optics to control the axes with servomotors.
• 10” color touch screen, which facilitates the status of the machine at all times.
• Electronic speed servo drives in bands and sealers.
• Welding temperature regulators with fine tunning and integrated Autotuning with full configuration and control from the touch screen.
• Backup/Restore function both in the PLC and in the Touch Screen to facilitate the replacement of these 2 elements, again saving time in a breakdown.
• Possibility of viewing both the machine manual and the electrical diagrams on the touch screen.
• Possibility of connecting the machine to the internet (Belca’s own fully secure VPN) to provide remote assistance, facilitating the detection of possible faults or making functional changes in the PLC and/or Touch Screen, this connection can be made via Wi-Fi (inserting the machine in the company’s Wi-Fi network) or via RJ45 cable (the client will provide an Ethernet network cable with internet access)
• The connection of the machine to the customer’s network will allow access from any device (PC, Smartphone, Tablet) to screens for displaying information on the real-time status of the machine (this access can be restricted by password.
SAFETY RULES
• Protections and security systems in accordance with European and American standards.
• General switches equipped with security systems.
• Transmission areas, chains, etc.… duly closed.
• CE certificate, the machine complies with the Machinery Directive 2006/42/CE.
• Synchronized feeders.
• End of reel detection.
• Photoelectric cell for print registration.
• Film folding system.
ACCESSORIES
• Exit rollers.
• Motorized band.
• Rotary table.
